July 20, 2022 NHTSA CAMPAIGN NUMBER: 22V513000
Fuel Rail May Crack and Leak Fuel
A fuel leak in the presence of an ignition source increases the risk of a fire.
NHTSA Campaign Number: 22V513
Manufacturer BMW of North America, LLC
Components FUEL SYSTEM, GASOLINE
Potential Number of Units Affected 2
Summary
BMW of North America, LLC (BMW) is recalling certain 2022 X3 xDrive30i vehicles. The high-pressure fuel rail may crack and result in a fuel leak within the engine compartment.
Remedy
Dealers will replace the high-pressure fuel rail, free of charge. Owner notification letters were mailed September 19, 2022. Owners may contact BMW customer service at 1-800-525-7417.
Notes
Owners may also contact the National Highway Traffic Safety Administration Vehicle Safety Hotline at 1-888-327-4236 (TTY 1-800-424-9153), or go to www.nhtsa.gov.
Check if your BMW has a Recall
RECALL 22V-XXX: REPLACING HIGH PRESSURE FUEL RAIL
MODEL
E-Series | Model Description |
G01 | X3 xDrive30i Sports Activity Vehicle (SAV) |
AFFECTED VEHICLES
Vehicles which require this Campaign to be completed will show it as “Open” when checked either in AIR, the “Service Menu” of DCSnet (Dealer Communication System), ISPA Next or Warranty Vehicle Inquiry.
SITUATION
BMW AG has issued a Delivery Stop (effective July 12, 2022) on two Model Year 2022 BMW X3 SAV vehicles that were produced on June 15, 2022. As of July 14, 2022, this delivery stop has been upgraded to a safety recall.
During the production process, the high-pressure fuel rail fell below the permissible wall thickness of at least 2 mm. As a result, fuel may escape from the high-pressure fuel rail into the engine compartment.
CAUSE
Production error.
CORRECTION
Replace high-pressure fuel rail.
PROCEDURE
Replace the high-pressure fuel rail per REP 13 53 156 – Remove and install high-pressure rail.
PARTS INFORMATION
Part Number | Description | Quantity |
13 53 8 665 633 | High-pressure rail | 1 |
13 53 8 661 715 | Hexalobular socket screw (BM6X70-8.8) | 4 |
13 53 8 661 716 | Hexalobular socket screw (5×30-10.9) | 8 |
13 53 9 847 174 | Gasket ring | 4 |
Chronology :
On June 16, 2022, BMW received a report regarding a high-pressure fuel rail issue from an engine production plant. An engineering analysis was initiated, and the supplier was contacted.
A review of supplier records indicated that a production tooling issue had occurred which may have led to certain fuel rails not being produced to specifications. The supplier performed a parts sorting process to remove potentially affected parts. Supplier production tooling was updated, and subsequent initial parts produced were analyzed and determined to be within specifications.
Initial reviews suggested that all potentially affected parts had been removed from the supply chain. However, testing and analyses of parts produced prior to the date of the production tooling issue were performed and indicated that these parts may also not have been produced to specifications. As a result, all parts produced from the last production tooling verification date were identified, and a parts traceability was performed to identify potentially affected engines.
Vehicle assembly information and supplier production records were reviewed to determine the number and production dates of potentially affected vehicles.
On July 13, 2022, BMW decided to conduct a voluntary recall.
BMW has not received any reports, nor is BMW otherwise aware, of any accidents or injuries that may be related to this issue.
After the implementation of 22V-513, on August 11, 2022 BMW became aware of 3 additional vehicles for the US market which were produced with potentially affected fuel rails due to a further review of the production period of potentially affected parts by the supplier.
On August 11, 2022, BMW decided to expand the voluntary safety recall.
1 Affected Product
Vehicle
MAKE | MODEL | YEAR |
BMW | X3 | 2022 |
8 Associated Documents
Defect Notice 573 Report
RCLRPT-22V513-5840.PDF 214.191KB
Recall Acknowledgement
RCAK-22V513-4910.pdf 696.542KB
Remedy Instructions and TSB
RCRIT-22V513-2584.pdf 74.455KB
Manufacturer Notices(to Dealers,etc) – Notice to Dealers re Fuel Systems
ISSUED Owner Notification Letter(Part 577)
RCONL-22V513-9762.pdf 658.062KB
Recall 573 Report – 8/18/22
RCLRPT-22V513-6780.PDF 215.928KB
Recall 573 Report
RCLRPT-22V513-1346.PDF 215.928KB
Recall Quarterly Report #1, 2022-3
RCLQRT-22V513-5374.PDF 211.126KB
Latest Recalls Documents
For the Latest and Most Recent Recalls Information Visit the link below…
https://www-odi.nhtsa.dot.gov/acms/cs/documentList.xhtml?docId=22V513&docType=RCL
- Function: Yuesstloo fuel injector removal install tool is used to install and remove the B36 B38 B48 engine injector. Make your job easier, save your time and money.
- Application: Compatible with BMW B36 B38 B48 engine.
- OEM Equivalent Part Number: 2358417 2358022. High precision, as accurate as OEM.
- Premium Material: Made of high-quality steel, high hardness, strong and not easy to break or deform. The exterior is coated with anti-rust layer, corrosion-resistance, extended service life.
- More convenient to transport and store. Comes with a carrying case, and we prepare a pair of gloves for you. If you are unhappy for any reason or there is some problem with our Fuel Injector Removal Install Tool Kit, you can get help from us. Customer satisfaction is our top priority.
- Function: Design to pull fuel injector, remove fuel injector, and install fuel injector seal
- Remove Fuel Injector Tool: This kit include 3 different injector puller, they can pull 3 different size fuel injector, so the fuel injector remove tool use in many vehicle, compatible with BMW N14, N18, N20, N26, N47, N53, N54, N55, N57, N63, S63, B38, B48, B58
- Install Fuel Injector Seal: This kit include fuel injector seal installer, compatible with BMW N13, N14, N18, N20, N26, N43, N53, N54, N55, N63, N74, S55, S63, B38, B48 engine
- Easy To Use: Use slide hammer allows you easy to pull the fuel injector out, improve work effectiveness
- Durable: The material is high quality steel, stable and strong, all the tools put in a plastic case, easy to carry and storage
- Application: Compatible with BMW N20, N55, S63, N63 after 2012, N53 N54 N47 N57 Engine; compatible with Mercedes Benz M133, M152, M157, M270, M271, M274, M276, M278 engine
- Function : Specially designed to remove and install the fuel injector for N20, N55, N53, N54, N43, N47, N57, N63, S63, M133, M152, M157, M270, M271, M274, M276, M278 Engine, one kit tool include compatible with BMW Benz fuel injector remover installer, which will help you save much money
- Professional Removal Injector Tool: This fuel injector tool kit easy to use, perfict fit N20 N55 N53 N54 N43 N47 N57 N63 S63 M133 M152 M157 M270 M271 M274 M276 M278 Engine, DPTOOL professional engine tool, professional design and service, help you to removal fuel injector more efficient
- Durable: Made of high quality steel and aluminum, anti-oxidant coating on the exteriorcorrosion resistant and durable, and we offer 12 month warranty, we will replace or refund, if our product have any quality problem
- Tips : This tool kit use reverse thread, when you need to tighten, please turn counterclockwise. if you don't know how to use, it's better to search in youtube, because wrong operation maybe will damage your car engine or break your high pressure fuel injectors

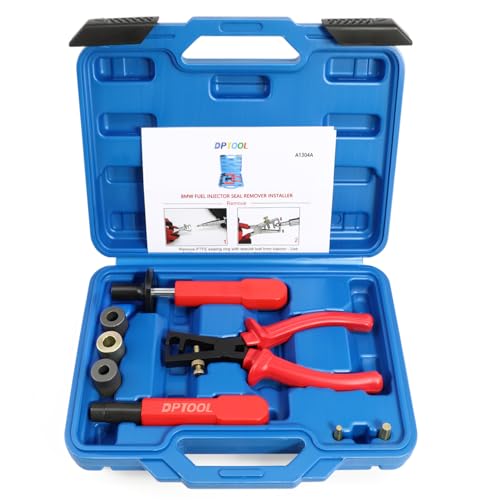

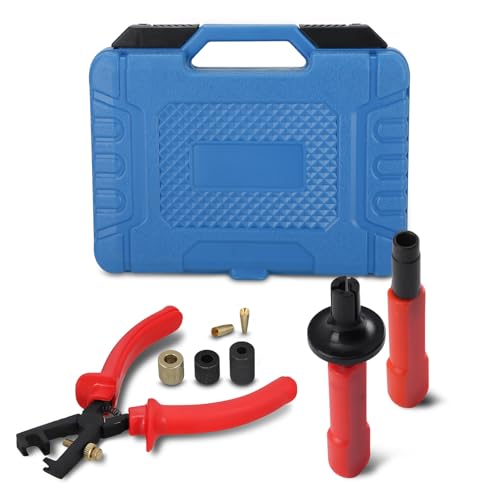

- 🔨MAIN FUNCTION - Angchun fuel injector oil seal replacement remover is specifically designed for injector seal removal and installation. The oil seal puller tool is a set of fitting aids to enable the operator to correctly fit the Teflon seal (or ring) onto a BMW fuel injector prior to refitting the fuel injector to the cylinder head.
- 🔨MAIN APPLICATION - Angchun Fuel injector seal installer/remover set compatible for BMW N13,N14,N18,N20,N26,N43,N53,N54,N55,N63,N74,S55,S63,B38,B48
- 🔨EXQUISITE DESIGN - The Teflon seal material is designed to expand once installed into the injector bore to enable an effective seal
- 🔨2 AID SETS - Angchun oil seal removal tool comes two OEM fitting aid sets 13 0 190 and 13 0 280
- 🔨2 SEAL METHODS - Two different methods of shrinking the Teflon seal, depending on the engine code reference and the type of injector fitted
- More Comprehensive Tool Set: This tool kit includes camshaft timing tool, flywheel holder tool, balance shaft tool, fuel injector install & remove tool. This set has more tools than other tool sets, has more comprehensive functions, and it can meet your more different needs, make your work more convenient.
- Camshaft Timing Tool: Used to check and set the camshaft in correct position when replacing timing belt. Compatible with BMW N20 and N26 engines (4 Cylinder Turbo). OEM Equivalent Part Number: 212 831, 119 340, 212 830, 219 548.
- 2801 Flywheel Holder Tool: Used to lock the transmission flex plate in place to perform a timing service on the BMW N20 / N26 engine. Secure the crankshaft with the transmission installed. While replacing the timing chain, the tool can hold the flywheel. It helps release and tighten down the central bolts on the vibrating damper.
- 7676 Oil Seal Repair Kit: Used to repair the balance shaft, keep the chain sprocket, remove and install the oil pump, chain and sprocket repair. Compatible with BMW N20 N26 1.6L/2.0L petrol engines. Replace BMW factory tool No. 83302318117, 83302212825.
- Fuel Injector Install & Remove Tool: Used to install and remove the injector for N20 N55 engine. Compatible with BMW N20 and new N55 engine, not fit for old N55 engine.
- Attention: All the tools are newly made products, and due to factory craftsmanship, there is no additional beautification process, so some parts may not look good. Thinking Carefully before purchasing.

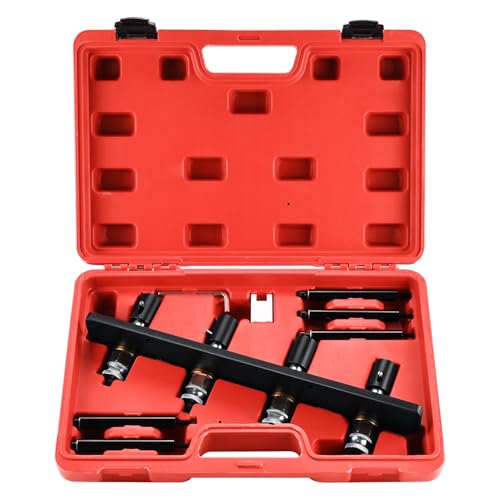

- Vehicles Fitment: Replacement for BMW N20, N26, N43, N47, N51, N52, N53, N54, N55, N57, N63, S63 Engine Injector Disassembly Installation
- Ease of use: This tool can be used to pull out or install a pair of injectors using reverse threaded screws, making injector removal and installation much easier.
- Durable: Made of high-quality steel and aluminum, with an antioxidant coating on the outside, corrosion-resistant and durable.
- Warranty for 8 Months, any issue would be solved immediately, please feel free to contact us.
- Type: Pry Bar, Trim Removal Tool, Valve Spring Compressor, Fuel Injector Removal Install Tool Kit
- OEM Part Number: 2358417, 2358022
- Fitment: Replacement for BMW B36 B38 B48 engine
- High Quality: Made of high-quality steel, high hardness and very strong, not easy to break and deform, exterior is coated with anti-rust layer, extended service life.
- Note: Please carefully check the OEM part number and illustrations to make sure it fits your car. If you are not sure if our product is a good match for your model, please contact us.
- ◇ Application: Fuel injector install tool compatible for BMW N20, and new N55 engine, BM number: 130320, note: this injector not fit old N55 engine
- ◇ Function: This tool is designed for removal and installation the fuel injector.
- ◇ Tips: you must evenly install the tool first before installing or removing the injectors.The tool may not come fully tighten, so you must first make sure you tighten everything first before you use the tool, because wrong operation maybe will damage your car engine or break your high pressure fuel injectors
- ◇ OEM Standard: made of high quality steel, hard, stable and strong, not easy to damage, our quality even exceeds OEM and help you save a lot of money.
- ◇ Prokomon - We pursue outstanding quality and professional technical support. If you are not satisfied with this product or if you have any question, please feel free to let us know. We offer one year warranty, we will refund or replace, if the product have any quality problem

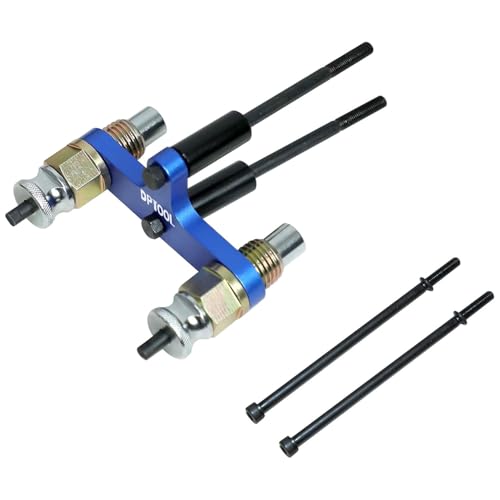

- Function: Specially designed to install and remove the injector for N20 N55 engines.
- Application: Alltooetools Fuel injector install tool compatible with BMW N20, and new N55 engine, BM number: 130320, note: this injector not fit old N55 engine
- Tips: you much evenly install the tool first before installing or removing the injectors.The tool may not come fully tighten, so you much first make sure you tighten everything first before you use the tool, if you don't know how to use, it's better to search in youtube, because wrong operation maybe will damage your car engine or break your high pressure fuel injectors
- OEM Standard: Made of high quality steel, high hardness, stable and strong, not easy broken,and help you save much money

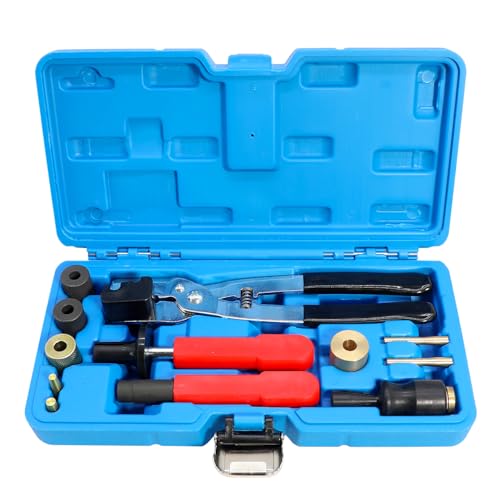

- MAIN FUNCTION- Set of fitting aids to enable the operator to correctly fit the Teflon seal (or ring) onto a BMW fuel injector prior to refitting the fuel injector to the cylinder head.
