Safety Recall 20V‐761 48‐Volt Battery Connections – 2021 BMW

“This site contains affiliate links for which OEMDTC may be compensated”

December 9, 2020 NHTSA CAMPAIGN NUMBER: 20V761000

48V Battery Connection Misassembled

Increased electrical resistance can increase the risk of a fire.



NHTSA Campaign Number: 20V761

Manufacturer BMW of North America, LLC

Components ELECTRICAL SYSTEM

Potential Number of Units Affected 812



Summary

BMW of North America, LLC (BMW) is recalling certain 2021 M340i xDrive, M440i xDrive Coupe, 530i, 530i xDrive, 540i, 540i xDrive, 740Li, 740Li xDrive, 840i Gran Coupe, 840i xDrive Gran Coupe, X5 sDrive40i, X5 xDrive40i, X6 sDrive40i, X6 xDrive40i, and X7 xDrive40i vehicles. The connection between the 48-Volt battery and the starter-generator may not have been assembled properly, which can cause increased electrical resistance at the connections.



Remedy

BMW will notify owners, and dealers will inspect the connection between the 48-Volt battery and the starter-generator assembly, replacing it if necessary, free of charge. The recall is expected to begin April 12, 2021. Owners may contact BMW customer service at 1-800-525-7417.



Notes

Owners may also contact the National Highway Traffic Safety Administration Vehicle Safety Hotline at 1-888-327-4236 (TTY 1-800-424-9153), or go to www.safercar.gov.



Check if your BMW has a Recall




SIB 12 01 21
2021-03-15

RECALL 20V-761: CHECK 48 V CABLE CONNECTIONS ON STARTER GENERATOR (SGR)

This Service Information Bulletin (Revision 2) replaces SI B12 01 21 dated February 2021.



What’s New (Specific text highlighted):

  • Assigned Recall Number



Please perform the procedure outlined in this Service Information on all affected vehicles before customer delivery. In the event the customer has already taken delivery of the vehicle, please perform the procedure the next time the vehicle is in the shop.



MODEL

E-Series Model Description Production Date
G01 X3 Sports Activity Vehicle November 16, 2020 – November 30, 2020
G02 X4 Sports Activity Coupe November 21, 2020
G05 X5 Sports Activity Vehicle September 30, 2020 – January 13, 2021
G06 X6 Sports Activity Coupe October 2, 2020 – December 1, 2020
G07 X7 Sports Activity Vehicle October 1, 2020 – January 11, 2021
G30 5 Series Sedan September 9, 2020



AFFECTED VEHICLES

Vehicles which require this Recall Campaign to be completed will show it as “Open” when checked either in AIR, the “Service Menu” of DCSnet (Dealer Communication System), ISPA Next or Warranty Vehicle Inquiry.



SITUATION

BMW AG is conducting a Voluntary Safety Recall (effective February 12, 2021) on a small number of Model Year 2021 BMW vehicles that were produced between September 9, 2020 and January 13, 2021.

This is an expansion of recall 20V-761 that was launched in early December 2020.

The 48-Volt battery cable connections to the starter / generator (SGR) may not have been assembled to specifications.  Over time, this could lead to increased resistance at the connection(s) and, in rare cases, a thermal event.



CORRECTION

Check the M8 flange nuts and cable connections on the SGR. If necessary, replace the flange nut and torque to spec.



PROCEDURE

Check the positive (1) and negative (2) cables for play at the mounting lugs on the SGR.

If the connections are tight and the cables cannot be moved by hand–  No further action is necessary

If there is play in the connection to the SGR –

Deactivate the 48 V electrical system (Repair instruction REP-TAT-P-6124-18-B47_48V)

Remove and discard the flange nut on the B+ or B- cable

Install a new flange nut so that it’s carefully started by hand to avoid cross-threading Torque to 19 Nm



PARTS INFORMATION

Only use and invoice the part numbers below that apply.

Performing a part number look-up in ETK (EPC) by VIN or model in place of using/invoicing the following part numbers may result with the wrong part numbers being invoiced and installed, this could delay the payment of the claim.

Part Number Description Quantity
07 14 3413174 Flange nut (rounds to 10) Up to 2






Safety Recall 20V‐761
48‐Volt Battery Connections Model Year
2021
Various BMW Models
Issue Date: 12/03/2020
Last Update: 12/03/2020



Q1. Which BMW Group models in the US are potentially affected by this Safety Recall?

Certain vehicles equipped with a 48‐Volt battery, specifically Model Year 2021 BMW 3 Series, 4 Series Coupe, 5 Series, 7 Series, 8 Series Gran Coupe, X5 SAV, X6 SAC, and X7 SAV models in the US, produced between June and October 2020, are potentially affected.



Q2. What is the specific issue?

The 48‐Volt battery cable connections to the starter / generator may not have been assembled to specifications.  Over time, this could lead to increased resistance at the connection(s) and, in rare cases, a thermal event.



Q3. Why are other models / vehicles not included in this Safety Recall?

Other models have been assembled to specifications.



Q4. Can I continue to drive my vehicle?

Yes.  If you are not the only driver of this vehicle, please advise all other drivers of this important information.



Q5. How did BMW Group become aware of the issue?

BMW Group became aware of the issue through our quality control procedures.



Q6. How will I be informed of this Safety Recall?

Letters will be mailed to owners in January via First Class mail advising them of this Safety Recall.

To ensure BMW has the most recent contact and vehicle information, owners should register their vehicle at www.bmwusa.com/myBMW.  Registration is free and will give them access to factory initiated campaigns and other information specific to their BMW.



Q7. How will my vehicle be repaired?

The 48 Volt battery connections will be inspected and, if necessary, replaced.




20V-761
Amendment
Additional Chronology



The field continue to be monitored.  In December 2020, two more incidents were reported.



Inspections of these incidents / vehicles showed characteristics that were similar to previously inspected vehicles in which the 48-Volt battery positive cable connection to the starter-generator was suspect.  The fastening nut did not appear to be seated properly on the starter-generator assembly’s bolt.



Further reviews of vehicle manufacturing records indicated that the two incident vehicles had been sent to an assembly plant rework station, as had vehicles which were identified and were previously reported.  Upon further review, it has been determined that a number of additional vehicles were subject to a rework process in which the 48-Volt battery positive cable connection to the starter-generator was suspect.



On February 10, 2021, BMW decided to conduct a voluntary safety recall.



BMW has not received any reports, nor is otherwise aware, of any accidents or injuries related to this issue.







9 Affected Products

Vehicles

MAKE MODEL YEAR
BMW 530I 2021
BMW 540I 2021
BMW 740LI 2021
BMW 840I 2021
BMW M340I 2021
BMW M440I 2021
BMW X5 2021
BMW X6 2021
BMW X7 2021




18 Associated Documents

ISSUED Owner Notification Letter(Part 577)

RCONL-20V761-0094.pdf 634.982KB

Loader Loading...
EAD Logo Taking too long?

Reload Reload document
| Open Open in new tab

Download [620.10 KB]




Recall Quarterly Report #1, 2020-4

RCLQRT-20V761-1068.PDF 211.129KB

Loader Loading...
EAD Logo Taking too long?

Reload Reload document
| Open Open in new tab

Download [206.18 KB]




RCMN 20V761 – Dealer Message re BMW Safety Recall: 48-Volt Battery Connections

RCMN-20V761-3933.pdf 102.022KB

Loader Loading...
EAD Logo Taking too long?

Reload Reload document
| Open Open in new tab

Download [99.63 KB]




Miscellaneous Document – 20V-761 Amendment Additional Chronology

RMISC-20V761-0310.pdf 46.505KB

Loader Loading...
EAD Logo Taking too long?

Reload Reload document
| Open Open in new tab

Download [45.42 KB]




Remedy Instructions and TSB – Service Information Bulletin re RECALL: CHECK 48 V CABLE CONNECTIONS ON STARTER GENERATOR (SGR) 2021-02-19 – This Service Information Bulletin (Revision 1) replaces SI B12 01 21 dated February 2021

RCRIT-20V761-7409.pdf 230.234KB

Loader Loading...
EAD Logo Taking too long?

Reload Reload document
| Open Open in new tab

Download [224.84 KB]




Manufacturer Notices(to Dealers,etc) – Dealer Notification re BMW Recall 20V-761: 48-Volt Battery Connections – UPDATE

RCMN-20V761-2286.pdf 16.139KB

Loader Loading...
EAD Logo Taking too long?

Reload Reload document
| Open Open in new tab

Download [15.76 KB]




Recall Quarterly Report #3, 2021-2

RCLQRT-20V761-3233.PDF 211.311KB

Loader Loading...
EAD Logo Taking too long?

Reload Reload document
| Open Open in new tab

Download [206.36 KB]




ISSUED Owner Notification Letter(Part 577)

RCONL-20V761-7255.pdf 648.835KB

Loader Loading...
EAD Logo Taking too long?

Reload Reload document
| Open Open in new tab

Download [633.63 KB]




Remedy Instructions and TSB – Remedy Instructions re SIB 12 01 21 RECALL 20V-761: CHECK 48 V CABLE CONNECTIONS ON STARTER GENERATOR (SGR)

RCRIT-20V761-0393.pdf 230.833KB

Loader Loading...
EAD Logo Taking too long?

Reload Reload document
| Open Open in new tab

Download [225.42 KB]




Defect Notice 573 Report

RCLRPT-20V761-8478.PDF 219.993KB

Loader Loading...
EAD Logo Taking too long?

Reload Reload document
| Open Open in new tab

Download [214.84 KB]




Recall Acknowledgement

RCAK-20V761-2772.pdf 244.101KB

Loader Loading...
EAD Logo Taking too long?

Reload Reload document
| Open Open in new tab

Download [238.38 KB]




Remedy Instructions and TSB – Dealer Notification re Safety Recall 20V‐761 48‐Volt Battery Connections Model Year 2021

RCRIT-20V761-1656.pdf 324.905KB

Loader Loading...
EAD Logo Taking too long?

Reload Reload document
| Open Open in new tab

Download [317.29 KB]




Manufacturer Notices(to Dealers,etc) – Dealer Notification re BMW Recall 20V-xxx: 48-Volt Battery Connections

RCMN-20V761-9373.pdf 137.714KB

Loader Loading...
EAD Logo Taking too long?

Reload Reload document
| Open Open in new tab

Download [134.49 KB]




Remedy Instructions and TSB – Service Information Bulletin re RECALL 20V-761: CHECK 48 V CABLE CONNECTIONS TO THE STARTER GENERATOR (SGR)

RCRIT-20V761-2470.pdf 325.332KB

Loader Loading...
EAD Logo Taking too long?

Reload Reload document
| Open Open in new tab

Download [317.71 KB]




Remedy Instructions and TSB – Remedy Instructions re RECALL 20V-761: CHECK 48 V CABLE CONNECTIONS TO THE STARTER GENERATOR (SGR)

RCRIT-20V761-4443.pdf 326.741KB

Loader Loading...
EAD Logo Taking too long?

Reload Reload document
| Open Open in new tab

Download [319.08 KB]




Recall 573 Report

RCLRPT-20V761-6088.PDF 221.577KB

Loader Loading...
EAD Logo Taking too long?

Reload Reload document
| Open Open in new tab

Download [216.38 KB]




Recall Quarterly Report #2, 2021-1

RCLQRT-20V761-7850.PDF 211.225KB

Loader Loading...
EAD Logo Taking too long?

Reload Reload document
| Open Open in new tab

Download [206.27 KB]




Recall Quarterly Report #4, 2021-3

RCLQRT-20V761-1156.PDF 211.415KB

Loader Loading...
EAD Logo Taking too long?

Reload Reload document
| Open Open in new tab

Download [206.46 KB]




Latest Recalls Documents

For the Latest and Most Recent Recalls Information Visit the link below…

https://www-odi.nhtsa.dot.gov/acms/cs/documentList.xhtml?docId=20V761&docType=RCL

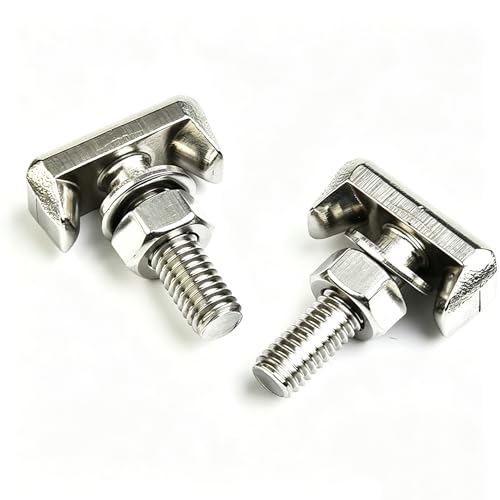

Bestseller No. 1
UTSAUTO Battery Terminal T-Bolt Kit 19116852 64740 Battery Cable Tensioner Bolt Screw 2-Pack for GMC Chevrolet BMW, Replaces 6X0-915-138 6X0915138 61128373946
  • Fitment :This part fits for 64740 GM 19116852, VW 6X0-915-138, BMW 61128373946
  • Easy to Change and Install
  • Stainless Steel M5x0.8 Thread
  • Battery Terminal Replacement T-Bolt come with Nut ,Washer
  • Package include :2 x 19116852 Battery Terminal T-Bolt Kit
Bestseller No. 2

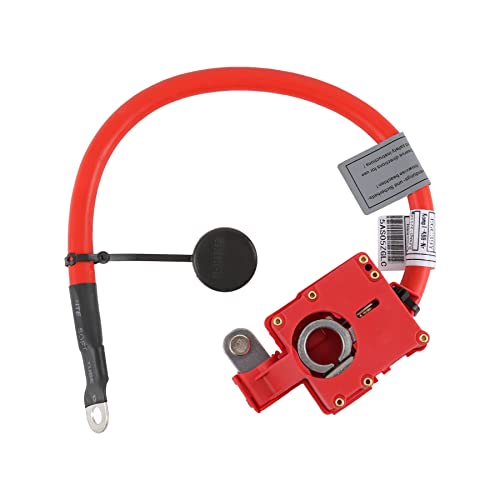

Positive Terminal Battery Blow Off Cable Lead Wire Plus Pole Replacement For BMW E90 E91 E92 E82 E84 E88 128i 135i 325i 325xi 328i 328xi 330i 330xi 335d Replaces 61129217031 61126988974 61136982227
  • Package Included: 1x Positive Battery Cable; This Battery Cable is designed to provide a solid connection to your vehicle's battery. For quality assurance, our Battery Cables are tested for conformance to product standards
  • Positive Battery Lead Replace Part Number: 61129217031, 61 12 9 217 031, 61136982227, 61126938495, 61126988974
  • Fitment: Replacement For BMW E82 128i 135i 135is 2008-2013; Replacement For BMW E90 325i 325xi 328i 328xi 328i xDrive 330i 330xi 335d 335i 335xi 335i xDrive M3- Sedan 2006-2011; Replacement For BMW E91 325xi 328i 328xi 328i x Drive- Wagon 2006-2012; Replacement For BMW E92 328i 2007-2013
  • Maximum Durability, Good Corrosion Resistance,High temperature resistance; High quality rubber is used to protect the inner wire body to extend the service time
  • This Positive Battery Terminal Cable Lead Wire is manufactured by the OE specification to provide a consistent appearance and direct-fit; Before ordering, please carefully check whether the product description is appropriate to avoid wrong purchase.To see if this item is compatible with your car, SEE THE PRODUCT DESCRIPTION SECTION / BELOW
SaleBestseller No. 3

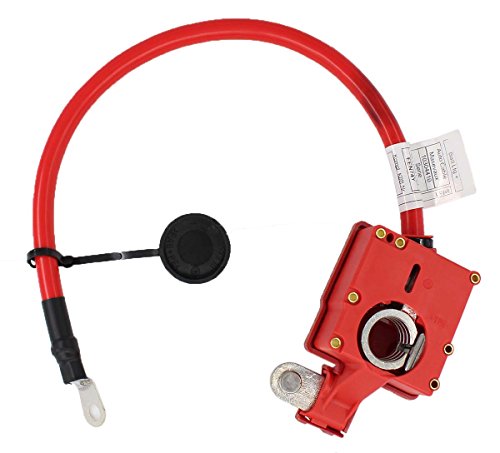

Positive Terminal Battery Blow Off Cable Lead Wire Plus Pole for E91 E90 Replaces OEM# 61129217031, 61 12 9 217 031
Bestseller No. 4
2 Pack 19116852 Battery Terminal T-Bolt Compatible with Chevy BMW GMC Volkswagen 64740 Battery Cable Tensioner Bolt Kit 6X0915138 61128373946
  • Fits positive or negative battery terminals of BMW 323I,325CI,325I,325XI,328CI,328I, 330CI,330I,330XI,525I,528I,530I,540I,M3,M5,Z4, 2007-2014 Cadillac Escalade,2007-2013 Chevy Avalanche,Suburban 2500,2007-2014 Chevy Silverado 1500,Silverado 2500,Silverado 3500,Suburban 1500,Tahoe,2007-2014 Gmc Sierra 1500,Gmc Sierra 2500,Gmc Sierra 3500,Gmc Yukon,Gmc Yukon XL 1500,2007-2013 Gmc Yukon XL 2500,2002-2008 Mini Cooper,2008-2010 Saturn Vue,1999-2003 Volkswagen Eurovan,VW Golf,VW Jetta
  • Replace part number: Dorman 64740, GM 19116852, VW 6X0-915-138, BMW 61128373946
  • Trustworthy quality: OE Style Terminal Bolt easy to replace your broken factory bolts. Made from quality materials to ensure reliable performance, perfect replacement for the battery terminal.
  • BMW battery terminal t bolt replacements: Exact part needed so that battery can securely be tightened down and allow for 100% contact. Helpful Tips: Do not over tighten this. These are made to break easily so as not to cause damage to the battery or the battery cable and terminals.
  • 20 Years Warranty BMW Battery Terminal T-Bolt: We will issue refund or arrange reshipment within 20 years, if this chevy battery terminal t bolt have any quality issue.
Bestseller No. 5
Battery Blow Off Cable Lead Wire Plus Pole For BMW E9x, E82, E84 Replace # 61129217031" rel="nofollow noopener sponsored" target="_blank"> NEWHOW Positive Terminal Battery Blow Off Cable Lead Wire Plus Pole For BMW E9x, E82, E84 Replace # 61129217031
  • Perfect Replacement: This cable lead wire is specifically designed as a direct replacement for the original part # 61129217031. It is tailor-made to fit BMW E9x, E82, and E84 models, ensuring a precise and seamless installation.
  • Premium Quality: Made from high-quality materials, this cable lead wire offers durability and reliability. It is built to withstand the demands of daily use and provides long-lasting performance.
  • Secure Electrical Connection: The positive terminal battery blow off cable lead wire ensures a secure and reliable electrical connection between the battery and the vehicle's electrical system. It guarantees uninterrupted power flow and optimal performance of various electrical components.
  • Easy Installation: Installing this cable lead wire is quick and straightforward. With its precise design and connectors, it allows for a hassle-free installation process. Simply follow the provided instructions to replace the old cable with the new one.
  • OEM Compatibility: This cable lead wire is designed to meet or exceed OEM specifications, ensuring compatibility and performance. It functions seamlessly with your BMW E9x, E82, and E84 models, providing the same level of reliability and functionality as the original part.
Bestseller No. 6
Replacement Battery Terminal T-Bolt Replace #19116852, 6X0915138, 64740 for BMW GMC Chevrolet Audi Volkswagen
  • Part Number: 19116852, 6X0915138,64740
  • Aftermarket replacement for 19116852
  • High quality, durable and last long
  • Easy to use
  • Package Include: 2x Bolt, 2x Nut ,2x Washer
Bestseller No. 7
ANTS PART 2 Pcs Replacement Battery Terminal T-Bolt Replace # 19116852, 6X0915138, 61128373946, 64740 for BMW GMC Chevrolet Volkswagen
  • Replace part number: 64740, GM 19116852, VW 6X0-915-138, BMW 61128373946
  • OE Style Terminal Bolt easy to replace your broken factory bolts.Made of quality stainless steel material, the t bolt is compact and stable in structure, not easy to break, deform or rust, with fine manufacturing process, to ensure reliable performance and long service life
  • Easy to Install: the battery terminal bolt is simple to install, you just need to install it manually at the target location, just takes a few seconds to install, no tools or instructions are required, saving you time and energy
  • Package Include: 2x Bolt, 2x Nut ,2x Washer
Bestseller No. 8
Tallew 8 Pcs Battery Terminal Bolt Kit Replacement Battery Terminal T Bolt Battery Terminal Nuts Car Battery Cable Extender T Bolt Compatible with 64740 GM 19116852, VW 6x0-915-138, BMW 61128373946
  • Enough to Meet Your Needs: the package contains 8 pieces of battery terminal t bolt kit, including 8 pieces of bolts, 8 pieces of nuts and 8 pieces of washers, sufficient in quantity to meet your daily use and replacement demands
  • Sturdy for Long Time Use: made of quality stainless steel material, the t bolt is compact and stable in structure, not easy to break, deform or rust, with fine manufacturing process, to ensure reliable performance and long service life, providing you with a pleasant experience
  • Ideal Replacement Parts: the battery terminal t bolt is an ideal replacement for original equipment, matching the fit and function of most factory parts of specified year, brand and model, you can use it with confidence
  • Easy to Install: the battery terminal bolt is simple to install, you just need to install it manually at the target location, just takes a few seconds to install, no tools or instructions are required, saving you time and energy
  • Range of Applications: these car battery bolts are compatible with 64740 GM 19116852, VW 6X0-915-138 and BMW 61128373946; They are reliable replacements for an original part which is missing or has failed due to long time use
Bestseller No. 9
Positive Battery Cables Replacement for BMW 325i 328i 330i 335i 335xi E90 E91 E92#61129217031
  • FITS THESE VEHICLES:BMW 2008-2013 128i 135i; 2006 325i 325Xi; 2007-2013 328i, 335i; 2008-2013 M3; 2013 X1; etc. Please check the description for all vehicles.
  • Replace OE#:61129217031, 61 12 9 217 031, 61126988974, 61126938495.
  • Maximum Durability, Good Corrosion Resistance,High temperature resistance.
  • High quality rubber is used to protect the inner wire body to extend the service time.
  • 1 year warranty for easy replacement.
Bestseller No. 10

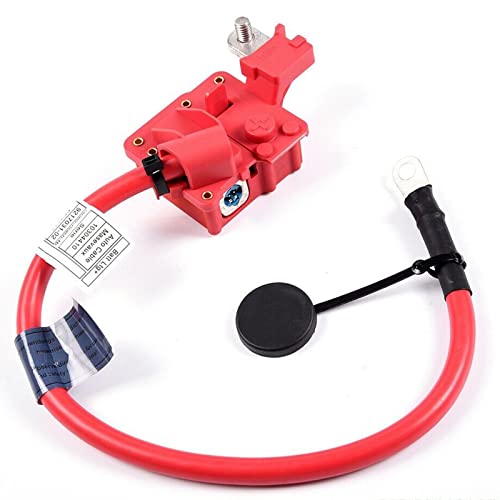

61129217031 Battery Positive Terminal Cable (Plus Pole) Compatible with BMW E82 E84 E88 E90 E91 E92 128i 135i 325i 325xi 328i 328xi 330i 330xi 335d 335i 335is 335xi M3 X1 61126988974
  • 【Applications】Positive Battery Terminal Cable Lead Compatible with BMW 2007-2013 328i(Coupe) 335i(Coupe), 2007-2011 328i(Sedan) 335i(Sedan), 2007-2012 328i(Wagon), 2009-2012 328i(xDrive) 335i(xDrive), 2008-2013 128i 135i M3(Coupe), 2006 325i(Sedan) 325xi(Sedan) more vehicle please refer to the following compatibility list. Find your vehicle before purchase, thank you.
  • 【Alternate Part #】61129217031, 61136982227, 61126938495, 61126988974
  • 【OEM Fit】This Positive Battery Terminal Cable Lead Wire is manufactured by the OE specification to provide a consistent appearance and direct-fit.
  • 【Excellent Performance】The Battery Terminal Cable is designed to provide a solid connection to the vehicle's battery, the battery safety terminal kit have been tested to ensure trouble-free installation and performance.
  • 【Warranty】12 Month Warranty. If you are unsure the application or any other problem with the Battery Cable Lead, plz message us with your VIN or vehicle information, we will reply you within 24 hours.

Last update on 2024-02-28 / Affiliate links / Images from Amazon Product Advertising API

This product presentation was made with AAWP plugin.

Leave a Comment

Share to...
