Recall 20V-678: Front Axle Support (Stop Drive) – 2020 BMW X5 X6 X7

“This site contains affiliate links for which OEMDTC may be compensated”

November 4, 2020 NHTSA CAMPAIGN NUMBER: 20V678000

Front Axle/Right Control Arm Not Welded Properly

If the weld between the front axle support and the right front control arm bearing bracket separates, vehicle handling and control may be affected, increasing the risk of a crash.



NHTSA Campaign Number: 20V678

Manufacturer BMW of North America, LLC

Components SUSPENSION

Potential Number of Units Affected 83



Summary

BMW of North America, LLC (BMW) is recalling certain 2020 X5 sDrive40i, xDrive40i, X5 M50i, X5M, X7 xDrive40i, X7 M50i, X6 xDrive40i, X6 M50i and X6M vehicles and 2021 X5 xDrive45e vehicles. The weld between the front axle support and the right front control arm bearing bracket may separate.



Remedy

BMW will notify owners, and dealers will replace the front axle support, free of charge. The recall began December 18, 2020. Owners may contact BMW customer service at 1-800-525-7417.



Notes

Owners may also contact the National Highway Traffic Safety Administration Vehicle Safety Hotline at 1-888-327-4236 (TTY 1-800-424-9153), or go to www.safercar.gov.



Check if your BMW has a Recall




MODEL

E-Series Model Description Production Date
F95 X5 M Sports Activity Vehicle June 4, 2020 – June 16, 2020
F96 X6 M Sports Activity Coupe June 15, 2020
G05 X5 Sports Activity Vehicle May 29, 2020 – June 16, 2020
G06 X6 Sports Activity Coupe June 4, 2020 – June 13, 2020
G07 X7 Sports Activity Vehicle June 2, 2020 – June 15, 2020



AFFECTED VEHICLES

Vehicles which require this Recall Campaign to be completed will show it as “Open” when checked either in AIR, the “Service Menu” of DCSnet (Dealer Communication System), ISPA Next or Warranty Vehicle Inquiry.



SITUATION

BMW AG is conducting a Voluntary Safety Recall (effective October 29, 2020) on a small number of Model Year 2020-2021 BMW vehicles that were produced between May 29, 2020 and June 16, 2020.



Over time, the front axle support may start to experience a separation at certain welding locations.  This could affect vehicle handling and control, and increase the risk of a crash.



CAUSE

Due to an error in the welding process, the tension strut bearing bracket was not welded correctly to the front axle support.



CORRECTION

Replace the front axle support.



PROCEDURE

Replace the front axle support according to repair instructions REP31 11 001.



Note:

For sDrive vehicles and models F95/96, refer to the appropriate attached REP until they are added to ISTA/AIR.



PARTS INFORMATION

Only use and invoice the part numbers below that apply.



Performing a part number look-up in ETK (EPC) by VIN or model in place of using/invoicing the following part numbers may result with the wrong part numbers being invoiced and installed, this could delay the payment of the claim.

Part Number Description Quantity
31 10 6 884 852 Front axle support 1
07 14 6 886 617 Multi-purpose bolt ASA (M10x27 10.9 ZNS) 10
07 11 9 908 587 Star-socket screw (BM12X1,5X50-10.) 4
07 11 9 908 507 Star-socket screw (BM12X1,5X40-U1-) 4
07 14 6 885 922 Multi-purpose bolt ASA (M12x1,5×90) 4
31 10 6 872 063 Hex bolt with washer (M14x54x1.5) 2
33 17 6 760 342 Hex bolt (M14x1,5×110) 2
33 30 6 760 349 Self-locking collar nut (M14x1,5-10 ZNS3) 2
07 14 6 885 653 Locking nut (M14x1.5-10 ZNS3) 2
07 14 6 885 389 Star-socket screw (M14x1.5×119 ) 2
33 30 6 787 062 Combination nut (M14x1,5-10ZNNIV) 2
32 30 6 778 609 Torx bolt (M8X33) 1
37 10 6 789 678 Hex nut with flange (M12x1,5-10-ZNS3) 2
07 11 9 906 938 Hexagon screw with flange (M12x1,5×25-10.9) 1 (2 w/N63B)
07 11 9 907 837 Hex bolt (M12x1,5×120 ) 1 (2 w/N63B)
07 11 9 908 596 Screw (M12x1,5×48) 8
07 14 7 483 888 Hex bolt (M10X55 10.9 ZNS) 1

(3 for F95/F96)

51 64 9 907 859 Hex bolt (M8X20-PC-ZNS3) 4
Additional parts SA2VP adaptive suspension
07 12 9 909 366 Screw (K-M6GFX20 ZNS3) 2
Additional parts SA3E3 xOffroad Package
07 14 9 229 516 Hex bolt with washer (M8x27) 10




Safety Recall 20V-xxx Front Axle Support
Model Year 2020-2021
BMW X5/X5M SAV, X6/X6M SAV, X7 SAV
Issue Date:  10/29/2020
Last Update:  10/29/2020



Q1. Which BMW models in the US are potentially affected by this Safety Recall?

A small number of Model Year 2020-2021 BMW X5/X5M SAV, X6/X6M SAV, and X7 SAV models in the US, produced between May and June 2020, are potentially affected.



Q2. What is the specific issue?

Over time, the front axle support may start to experience a separation at certain welding locations.  This could affect vehicle handling and control, and increase the risk of a crash.



Q3. Why are other models / vehicles not included in this Safety Recall?

The front axle carrier was produced according to specifications.



Q4. Can I continue to drive my vehicle?

No.  We do not recommend continuing to drive these vehicles.  If you are not the only driver of this vehicle, please advise all other drivers of this important information.



Q5. Can I determine if this issue exists in my vehicle?

No.



Q6. How did BMW become aware of the issue?

BMW became aware of the issue through our quality control procedures.



Q7. How will I be informed of this Safety Recall?

Owners of the vehicles are being contacted by phone and arrangements are being made for the Safety Recall to be performed.  Alternate transportation will be accommodated.  You can locate your nearest authorized BMW center at www.bmwusa.com/dealer.

To ensure the BMW Group has your most recent contact and vehicle information, please register your BMW vehicle at www.bmwusa.com/myBMW.  Registration is free, and will give you access to factory initiated campaigns and other information specific to your vehicle.



Q8. How will my vehicle be repaired?

The front axle support will be replaced for free and will take several hours.




Update:

Customer Relations called all affected customers today.  For those they couldn’t reach, we are sending an in-car notification to their vehicle.  If you are contacted by an affected customer over the weekend please do the following.

  • Ask them to stop driving their vehicle
  • Provide them with a loaner vehicle
  • Create a tow request in the BMW Roadside Assistance Digital Platform in DCSnet or by calling the BMW Assistance hotline 1-800-332-4269 for assistance creating the case.  Please do not direct the customer to call the Roadside Assistance hotline.

Thank you.



Message from October 29, 2020:

BMW AG is conducting a Voluntary Safety Recall (effective October 29, 2020) on a small number of Model Year 2020-2021 BMW vehicles that were produced between May 29, 2020 and June 16, 2020.

Over time, the front axle support may start to experience a separation at certain welding locations.  This could affect vehicle handling and control, and increase the risk of a crash.

Potentially affected vehicles are not to be driven.

The BMW Customer Relations Department will contact potentially affected customers and will inform them not to drive their vehicle and ask them which dealer they prefer to use. Customer Relations will then arrange to tow the vehicle and will provide assistance with loaner vehicles.

The bulletin will be updated when additional information becomes available.



Sincerely,

Technical Service







5 Affected Products

Vehicles

MAKE MODEL YEAR
BMW X5 2020-2021
BMW X6 2020
BMW X6 M 2020
BMW X7 2020




10 Associated Documents

Recall Quarterly Report #3, 2021-2

RCLQRT-20V678-5518.PDF 211.317KB

Loader Loading...
EAD Logo Taking too long?

Reload Reload document
| Open Open in new tab

Download [206.36 KB]




Remedy Instructions and TSB – RECALL 20V-XXX: FRONT AXLE SUPPORT (STOP DRIVE)

RCRIT-20V678-9490.pdf 190.354KB

Loader Loading...
EAD Logo Taking too long?

Reload Reload document
| Open Open in new tab

Download [185.89 KB]




Recall Quarterly Report #1, 2020-4

RCLQRT-20V678-0410.PDF 211.135KB

Loader Loading...
EAD Logo Taking too long?

Reload Reload document
| Open Open in new tab

Download [206.19 KB]




Owner Notification Letter(Part 577)

RCONL-20V678-5196.pdf 3182.249KB

Loader Loading...
EAD Logo Taking too long?

Reload Reload document
| Open Open in new tab

Download [3.03 MB]




Recall Acknowledgement

RCAK-20V678-4028.pdf 243.971KB

Loader Loading...
EAD Logo Taking too long?

Reload Reload document
| Open Open in new tab

Download [238.25 KB]




Manufacturer Notices(to Dealers,etc) – Dealer Notification re BMW Recall 20V-xxx: Front Axle Support (Stop Drive)

RCMN-20V678-8389.pdf 162.466KB

Loader Loading...
EAD Logo Taking too long?

Reload Reload document
| Open Open in new tab

Download [158.66 KB]




Defect Notice 573 Report

RCLRPT-20V678-6011.PDF 216.889KB

Loader Loading...
EAD Logo Taking too long?

Reload Reload document
| Open Open in new tab

Download [211.81 KB]




Manufacturer Notices(to Dealers,etc) – Dealer Notification re BMW Recall 20V-xxx: Front Axle Support (Stop Drive) – Update

RCMN-20V678-9724.pdf 39.626KB

Loader Loading...
EAD Logo Taking too long?

Reload Reload document
| Open Open in new tab

Download [38.70 KB]




Recall Quarterly Report #2, 2021-1

RCLQRT-20V678-0810.PDF 211.237KB

Loader Loading...
EAD Logo Taking too long?

Reload Reload document
| Open Open in new tab

Download [206.29 KB]




Recall Quarterly Report #4, 2021-3

RCLQRT-20V678-8031.PDF 211.417KB

Loader Loading...
EAD Logo Taking too long?

Reload Reload document
| Open Open in new tab

Download [206.46 KB]




Latest Recalls Documents

For the Latest and Most Recent Recalls Information Visit the link below…

https://www-odi.nhtsa.dot.gov/acms/cs/documentList.xhtml?docId=20V678&docType=RCL






Bestseller No. 1
JDMON 2PCS Rear Air Spring Kit Air Suspension Bags Replacement for BMW X5 F15 2013-2020, BMW X6 F16 2014-2021, Replaces 37126795013 37126795014
  • Sturdy and Durable Built: Our REAR air bag suspension are made of aluminum iron, alloy and rubber, combined with advanced sol technology, with strong acid & corrosion resistance and longer life
  • Excellent Shock Absorption: The air shock absorber reduces the frequency of vibration. No noise, long durability. Keep your car tires in contact with the road. Restore your vehicle to best driving condition and improve driving performance
  • Reference Part Number: Each air shock absorber assembly is thoroughly tested to make sure OE fit. Replaces OEM Number: 37126795013 37126795014
  • Applicable Models & Years: The air spring bags are compatible with BMW X5 F15 2013 2014 2015 2016 2017 2018 2019 2020, Compatible with BMW X6 F16 2014 2015 2016 2017 2018 2019 2020 2021
  • Same Quality as OEM : 2 x REAR air suspension parts, Replaces the original air spring directly and equal the original quality. As the instruction manual is not included, so we recommend you professionally assemble to maximize the performance of our product
Bestseller No. 2
A-Premium 8Pcs Front Suspension Kit, Lower Control Arm, Inner Outer Tie Rod End, Sway Bar Link, Bushing, Compatible with BMW E46-1999-2008-318i 323Ci 323i 325Ci 325i 328Ci 328i 330Ci 330i Z4
  • [Vehicle Fitment]: Compatible with BMW 318i 1999-2005 ✔ 323Ci 2000 ✔ 323i 1999-2000 ✔ 325Ci 2001-2006 ✔ 325i 2001-2005 ✔ 328Ci 2000 ✔ 328i 1999-2000 ✔ 330Ci 2001-2006 ✔ 330i 2001-2005 ✔ Z4 2003-2008 ✔
  • [Installation Position]: Front Suspension Left and Right Side
  • [Ideal Replacement]: This suspension steering kit is replacement for above model's suspension system, and may help you resolve those problems: ① clunking noise ② steering wander ③ uneven tire wear ④ excessive vibration ⑤ poor handling !!!!
  • [Package Detail]: 2 x Front Lower Control Arm Assembly, 2 x Front Sway Bar Link, 2 x Steering Tie Rod End Assembly (Inner & Outer Side), 2 x Control Arm Bushings
  • [Reference Part Number]: 31126758519, 31126752717, 31126758520, 31126752718, 31126783376, 31351095694 32111096897, 32111096898, 31126758520, 31126774820, 31126751317, 31126751318 31126777851, 31356780847, 32106777503
Bestseller No. 3
Front Suspension Kit Upper Control Arm E90 Compatible with BMW 3-Series 325i 328i 330i 335d 335i 335is 2006-2013,2008-2013 BMW E82 E88 1-Series 128i 135i, 2013-2015 BMW E84 X1(2WD Only)
  • Fitment:For 2008-2013 BMW 128i,2008-2013 135i
  • For 2012-2013 BMW 328i (excluding convertible/coupe),2007-2011 BMW 328i (all Models) ,For 2012 BMW 328i (excluding Xi Models) Wagon
  • For 2009-2010 BMW 335d (excluding all Models) Steering & Suspension Kit
  • For 2006 BMW 330i (excluding Xi Models),2006 BMW 325i (excluding Xi Models) Steering & Suspension Kit.,2013 BMW135is
  • For For 2012-2013 BMW 335i (excluding Xi Models) Coupe,2012-2013 BMW 335i (excluding Xi Models) Convertible, 2007-2011 BMW 335i(excluding Xi Models) Steering & Suspension Kit
Bestseller No. 4
Front Suspension Kit Upper Control Arm E90 Compatible with BMW 325i 328i 330i 335d 335i 335is 2006-2013, 2008-2013 BMW E82 E88 1-Series 128i 135i, 2013-2015 BMW E84 X1(2WD Only)
  • Fitment:For 2008-2013 BMW 128i,2008-2013 135i
  • For 2012-2013 BMW 328i (excluding convertible/coupe),2007-2011 BMW 328i (all Models) ,For 2012 BMW 328i (excluding Xi Models) Wagon
  • For 2009-2010 BMW 335d (excluding all Models) Steering & Suspension Kit
  • For 2006 BMW 330i (excluding Xi Models),2006 BMW 325i (excluding Xi Models) Steering & Suspension Kit.,2013 BMW135is
  • For 2012-2013 BMW 335i (excluding Xi Models) Coupe,2012-2013 BMW 335i (excluding Xi Models) Convertible, 2007-2011 BMW 335i(excluding Xi Models) Steering & Suspension Kit
Bestseller No. 5
JDMON Replacement for Rear Air Spring kit Air Suspension Bags Compatible with BMW X5 E70 2007 2008 2009 2010 2011 2012 2013, X6 E71 E72 2008-2014, 37126790080 37126790078, Pair Left & Right
  • 【STURDY and DURABLE BUILT】Our Air Bag Suspension are made of aluminum iron, alloy and rubber, combined with advanced sol technology, with strong acid & corrosion resistance and longer life
  • 【EXCELLENT SHOCK ABSORPTION】The air shock absorber reduces the frequency of vibration. No noise, long durability. Keep your car's tires in contact with the road. Restore your vehicle to best driving condition and improve driving performance.
  • 【Reference OEM NUMBER】Each air shock absorber assembly is thoroughly tested to make sure 100% OE fit. Please check the OE and model list carefully before order. Replaces OEM Number: 37126773664、37126774041、37126776995、37126783419、37126783420、37126790078、37126790079、37126790080、37126790081、37126790082、37126790083.
  • 【APPLICABLE MODELS & YEARS】The Rear Air Suspension is Compatible with BMW X5 E70 2007 2008 2009 2010 2011 2012 2013, Compatible with BMW X6 E71 E72 2008 2009 2010 2011 2012 2013 2014.
  • 【DIRECT REPLACEMENT】Replaces the original air spring kit of your car and equal the original quality. As the instruction manual is not included, so we recommend you professionally assemble to maximize the performance of our product.
Bestseller No. 6
A-Premium Set of 10, Front Lower Control Arm, Lower Ball Joint, Sway Bar Link, Outer Tie Rod End, Compatible with BMW E53 Series - X5 2000 2001 2002 2003, Sport Utility Only
  • [Vehicle Fitment]: Compatible with BMW E53 Series - X5 2000 2001 2002 2003 ✔ --- It Fits Sport Utility Models Only
  • [Installation Position]: Front Suspension Left and Right Side
  • [Ideal Replacement]: This suspension steering kit is replacement for above model's suspension system, and may help you resolve those problems: ① clunking noise ② steering wander ③ uneven tire wear ④ excessive vibration ⑤ poor handling !!!!
  • [Package Detail]: 2 x Front Sway Bar Link, 2 x Front Lower Ball Joint, 2 x Front Outer Tie Rod End, 2 x Front Lower Forward Control Arm Assembly, 2 x Front Lower Rearward Control Arm Assembly
  • [Reference Part Number]: ‎K80451, K80452, K80678, ES80676, MK80451, MK80452, 520-771, 520-772, 536-384, 520-942, 536-292, 536-293, 536-384, 534-988, TA2035, TC2064, TC2068, TC2069, TC2073, TC2074, 31121096169, 31126769717, 31121096170, 31126769718, 31126756491, 31121096425, 31126760276, 31121096316, 31356750703, 31356750704, 32211096327, 32106774335, 31126756491, 31121096425
Bestseller No. 7
A-Premium Set of 8, Front Lower Forward Rearward Control Arm, Sway Bar Link, Tie Rod End Assembly, Compatible with BMW 128i/135i 08-13, 325i/330i 06, 328i/335i 07-13, 335d 09-11, 335is 11-13, X1 12-15
  • [Vehicle Fitment]: Compatible with BMW 128i 2008-2013 ✔ 135i 2008-2013 ✔ 325i 2006-2006 ✔ 328i 2007-2013 ✔ 330i 2006-2006 ✔ 335d 2009-2011 ✔ 335i 2007-2013 ✔ 335is 2011-2013 ✔ X1 2012-2015 (Fit RWD Only) ✔
  • [Installation Position]: Front Suspension Left and Right Side
  • [Ideal Replacement]: This suspension steering kit is replacement for above model's suspension system, and may help you resolve those problems: ① clunking noise ② steering wander ③ uneven tire wear ④ excessive vibration ⑤ poor handling !!!!
  • [Package Detail]: 2 x Front Lower Forward Control Arm Assemblies, 2 x Front Lower Rearward Control Arm Assemblies, 2 x Front Sway Bar Links, 2 x Front Inner & Outer Tie Rod End Assemblies
  • [Reference Part Number]: 31126769797, 31126769798, 31126770849, 31126770850, 31356765933, 31356765934, 32106765235, 32106765236
Bestseller No. 8

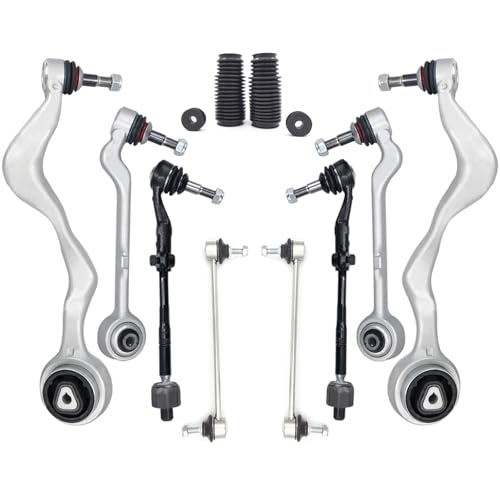

A-Premium Set of 8, Front Lower Control Arm & Bushing, Sway Bar Link, Inner & Outer Tie Rod End Assembly, Compatible with BMW E36 Series - 1992-2002 - 318i 318is 318ti 323is 325i 325is 328i Z3, RWD
  • [Vehicle Fitment]: Compatible with BMW 318i 1992-1998 ✔ 318is 1992-1997 ✔ 318ti 1995-1999 ✔ 323is 1998-1999 ✔ 325i 1992-1995 ✔ 325is 1992-1995 ✔ 328i 1996-1998 ✔ Z3 1996-1997 (Fit Convertible Only) ✔ Z3 1999-2002 ✔ --- It Fits RWD & E36 Series Models Only
  • [One-Step Solution]: This 8Pcs complete front end suspension kit is specially designed for 1992-2002 BMW E36 Series's front suspension system. The front end suspension kit contains 2 pieces steering parts which can improve the controllability of steering and 6 pieces suspension part which aim to reduces vibration from the road surface, and all of parts can give your old, muddy and rusty suspension a new look.
  • [Excellent Performance]: This set of front end suspension kit is made of superior quality steel casting, sturdy and durable, can adapt to a variety of complex road conditions, such as muddy roads, sand bumps, snow and ice roads, rugged mountain roads, etc., with high bearing capacity and long performance life, it brings you a safe and reliable driving experience.
  • [Package Detail]: 2Pcs Steering Parts - 2 x Front Inner and Outer Tie Rod End Assembly; 6Pcs Suspension Parts - 2 x Front Lower Control Arm Assembly, 2 x Front Sway Bar Link, 2 x Front Lower Control Arm Bushing; Reference Part Number: K80531, K80532, K90511, 31126758513, 31126758514, 31129059288, 31351091764, 32111139315, 32111139316
  • [Customer Support]: 1 Year Unlimited-mileage Quality Guarantee. Being brand new and sturdy, this front end suspension kit is the ideal replacement. Please get in touch with us at any time if the product has any quality issues, such as damage or isn't appropriate for your automobile.
Bestseller No. 9
K620800 K620801 K620798 K620799 Suspension Kit Front Lower Forward & Rearward Control Arm Ball Joint Fit for BMW X5/X6, 2007 2008 2009 2010 2011 2012 2013 2014 Driver Passenger Right Left Side
  • ★【Fitment】Replacement for 2007 - 2010 for BMW X5, All Models, 2011 - 2012 for BMW X5 xDrive 35d, xDrive 35i, xDrive 50i, 2013 for BMW X5 xDrive 35i, xDrive 50i, 2008 - 2010 for BMW X6, All Models, 2011 for BMW X6 xDrive 35i, xDrive 50i, Active Hybrid, 2012 - 2014 for BMW X6 xDrive 35i, xDrive 50i
  • ★【Package】1x Front Lower Left Rearward Control Arm w/Ball Joint - K620800, 1x Front Lower Right Rearward Control Arm w/Ball Joint - K620801, 1x Front Driver Side Lower Forward Control Arm w/Ball Joint - K620798, 1x Front Right Lower Forward Control Arm w/Ball Joint - K620799
  • ★【High Quality】Built with premium quality material and multiple tests, has been taken to ensure quality and durability. Direct replacement for original equipment, survive your car
  • ★【Buy with Confidence】Each product is backed with a 12-month warranty. We try to provide quality products and service to our customers. Any problem please feel free to contact us and you will get a satisfactory solution
  • ★【Note】Please check detailed fitment information with the Product description, make sure whether the control arm kit fits your car before placing order
Bestseller No. 10
Rear Suspension Lower Track Control Arm Kit Replacement for BMW E88 E90 E91 E92 E93#33326782238 33356764428 33326782237" rel="nofollow noopener sponsored" target="_blank"> Lamerto Rear Suspension Lower Track Control Arm Kit Replacement for BMW E88 E90 E91 E92 E93#33326782238 33356764428 33326782237
Lamerto Rear Suspension Lower Track Control Arm Kit Replacement for BMW E88 E90 E91 E92 E93#33326782238 33356764428 33326782237
  • OEM Part Number: 33326763473, 33326777980, 33326763471, 33322406290, 33326765425, 33326782237, 33326782238, 33356764428, 33556764428, 33326775552, 33326792553 / 33 32 6 763 473, 33 32 6 777 980, 33 32 6 763 471, 33 32 2 406 290, 33 32 6 765 425, 33 32 6 782 237, 33 32 6 782 238, 33 35 6 764 428, 33 55 6 764 428, 33 32 6 775 552, 33 32 6 792 553, 33 32 6 756 249
  • Replacement for: B-M-W 1 (E81, E87); 1 Coupe (E82); 1 Cabriolet (E88); 3 (E90); 3 Touring (E91); 3 Coupe (E92); 3 Cabriolet (E93)
  • The car control arm (also known as the swing arm) is used as the guiding and force transmission element of the car suspension system, which transmits various forces acting on the wheels to the car body while ensuring that the wheels move according to a certain trajectory. The automobile control arm elastically connects the wheel and the vehicle body through a ball hinge or a bushing respectively.
  • Function: 1. Transmit torque 2. Support steering knuckle arm 3. Relieve longitudinal load.
  • Please carefully check the OEM part number and illustrations to make sure it is compatible with your car. We are always here to solve any problems you may encounter, please contact us and we will respond as soon as possible.

Last update on 2024-02-06 / Affiliate links / Images from Amazon Product Advertising API

This product presentation was made with AAWP plugin.

Leave a Comment

Share to...
